01
Twin brushless motors
Two 15,000 rpm brushless motors, one driving each wheel. That's the twin power. Brushless means no brushes to wear down, so they're built for long sessions, day after day.
Volt Twin Power · pitching machine
Two motors. Twin power.

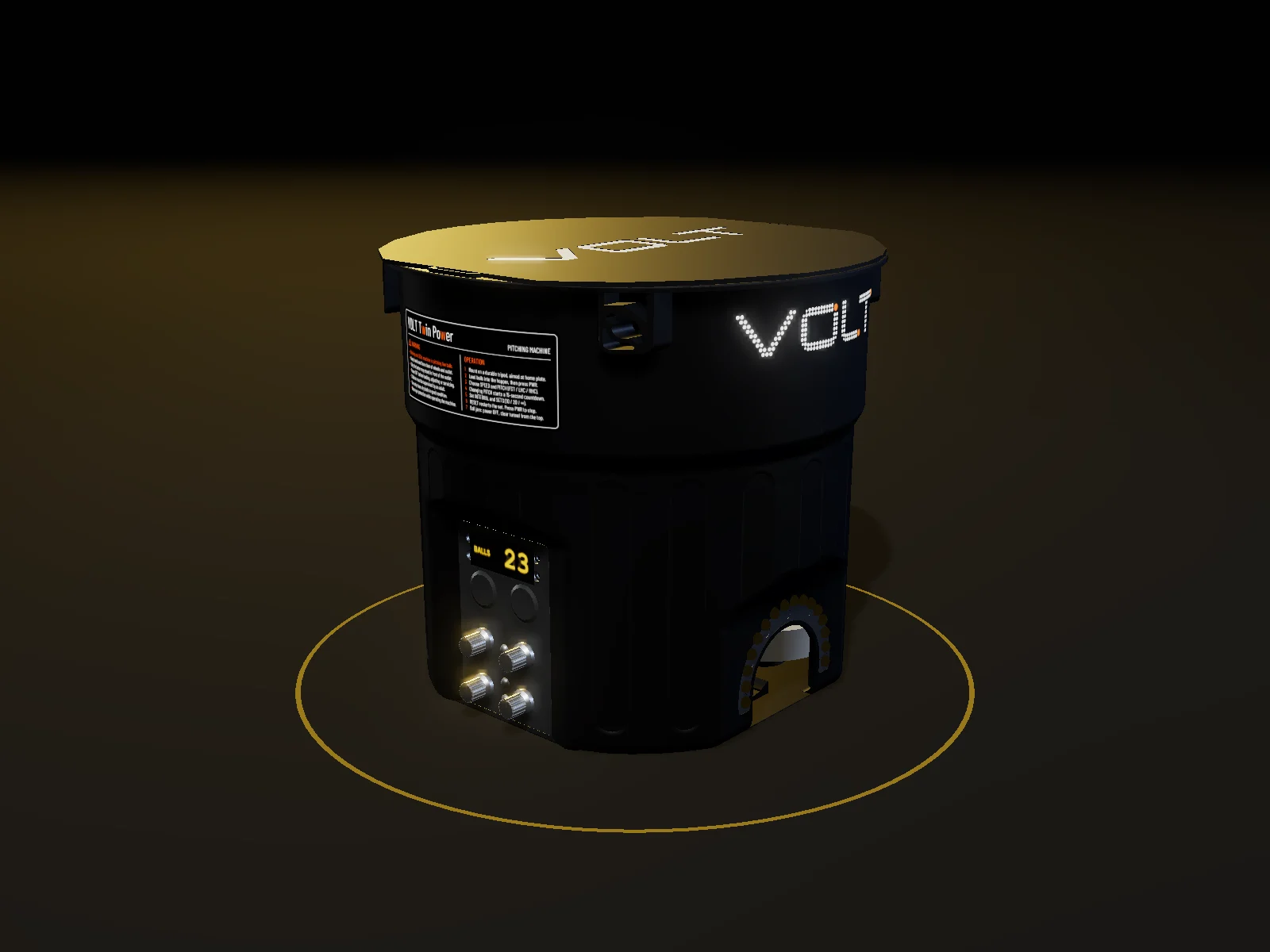

Volt Twin Power is the machine half of Volt BP, and the name is the engine: two 15,000 rpm brushless motors, one driving each wheel, with no brushes to wear down. Digital sensors and an ARM processor inside the sealed drum run every pitch, and every setting is a dial on the panel.
| Body | Sealed drum, 305 × 305 × 257 mm |
|---|---|
| Motors | Two brushless motors, 15,000 rpm, one per wheel |
| Processor | ARM |
| Phone | Not connected: every setting is on the panel |
| Sensors | Hall sensor on the ball dropper · IR ball sensors at the tunnel |
| Display | LED countdown ring · ball counter |
| Wheels | Twin Ø85 mm |
| Pitches | FST · LHC · RHC |
| Sets | 10 · 20 · continuous |
| Balls | Golf-ball-sized wiffle balls, via the hopper |
| Mount | Tripod, aimed at home plate |
| Top speed | Published once production machines are tested |

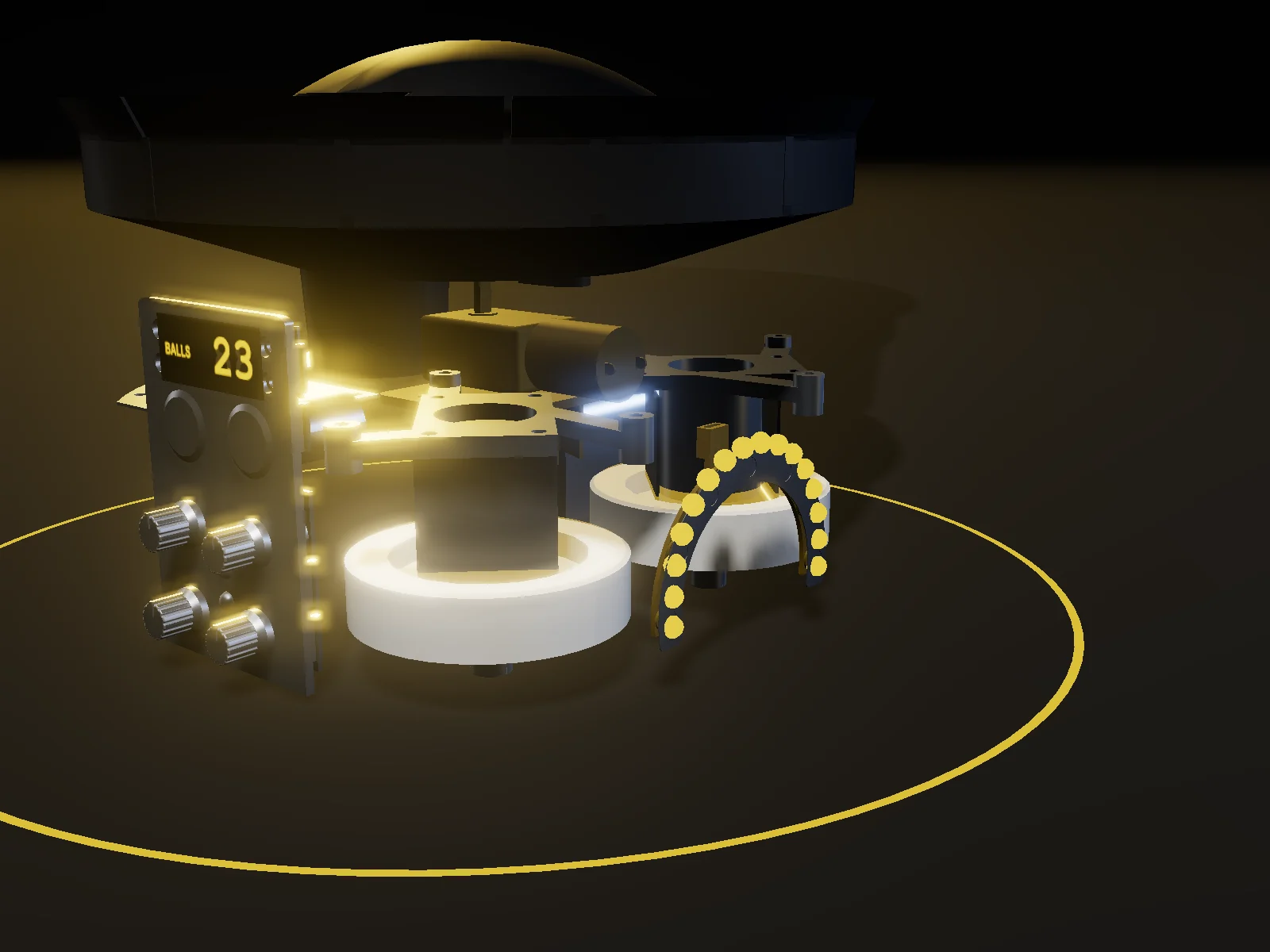

What's insideWhy it's called Twin Power
02
Digital sensors
A Hall sensor tracks the rotating ball dropper and drives the LED countdown ring, so you see the next pitch coming. IR sensors at the tunnel catch every ball that drops and add it to the ball counter.
03
ARM processor
A powerful ARM processor runs it all: the dials, the countdown ring, the interval, the sets and the ball count.
The panelEvery setting is a dial
- SpeedHow hard the wheels throw.
- PitchFST, LHC or RHC: a fastball and two curves. Changing it starts a 15-second countdown.
- IntervalTime between balls.
- Sets10, 20, or continuous (∞).
- PWR · ResetPWR starts and stops. RESET restarts the set.
OperationFrom the label
- 1Mount it on a sturdy tripod, aimed at home plate.
- 2Load balls into the hopper, then press PWR.
- 3Choose SPEED and PITCH (FST / LHC / RHC).
- 4Changing PITCH starts a 15-second countdown.
- 5Set INTERVAL and SETS (10 / 20 / ∞).
- 6RESET restarts the set. Press PWR to stop.
- 7Ball jam: power off, then clear the tunnel from the top.
SafetyRead before the first ball
- Blinking red LEDs: the machine is pitching live balls.
- Keep hands and face clear of the wheels and the outlet.
- Only the batter stands in front of the outlet.
- Power off before loading, adjusting or servicing.
- Children must be supervised by an adult.
- Use only clean, dry balls in good condition.
- Wear eye protection while the machine runs.
RendersFrom the CAD model · photos come with production units
